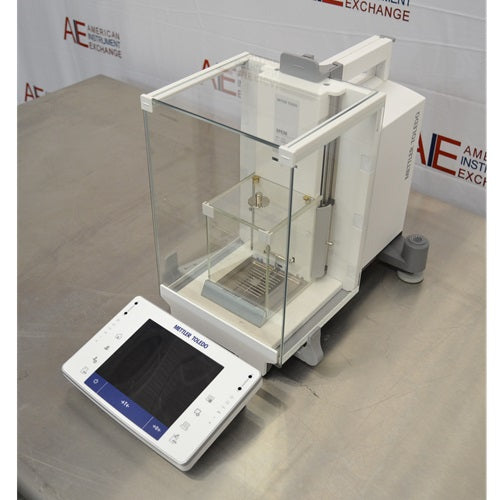

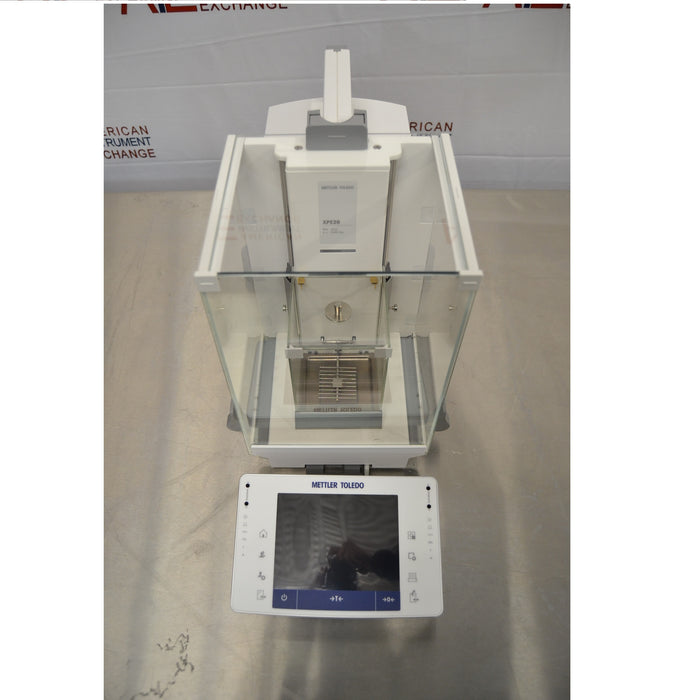

Mettler Toledo XPE26 Microbalance – Used & Refurbished
The Mettler Toledo XPE26 Microbalance is a high-performance laboratory microbalance designed for applications requiring precise measurement of extremely small sample quantities. With a maximum weighing capacity of 22 g and readability of 0.001 mg (1 µg), the XPE26 provides the sensitivity required for pharmaceutical research, analytical chemistry, formulation, standards preparation, materials science, and other demanding micro-weighing applications.
Available used and refurbished from American Instrument Exchange, the Mettler Toledo XPE26 provides laboratories with access to advanced microgram-level weighing performance at a significantly lower acquisition cost than purchasing a comparable new microbalance. Each balance is inspected, cleaned, calibrated, and tested for weighing accuracy and repeatability before shipment and includes a 90-day warranty from American Instrument Exchange.
Key Features
22 g maximum weighing capacity
0.001 mg / 1 µg readability across the weighing range
Typical repeatability as low as 0.0007 mg / 0.7 µg
Typical USP minimum weight of approximately 1.4 mg
proFACT Advanced automatic internal adjustment
SmartGrid weighing pan helps reduce the influence of air turbulence
StatusLight provides an immediate visual indication of balance readiness
Detachable color touchscreen terminal
Approximately 3.5-second settling time
Compact 40 × 40 mm weighing pan
Used, refurbished, calibrated, and tested by American Instrument Exchange
90-day warranty included
Overview
Microbalances operate at a level of sensitivity substantially beyond conventional laboratory precision and analytical balances. The Mettler Toledo XPE26 is capable of resolving changes in mass down to a single microgram, making careful control of environmental and handling variables especially important.
Mettler Toledo designed the XPE26 as part of its Excellence series to combine this high level of weighing sensitivity with technologies intended to make routine micro-weighing more reproducible and easier to manage.
The balance incorporates proFACT Advanced internal adjustment, allowing the instrument to automatically compensate for conditions that can affect weighing accuracy. Its StatusLight provides an easily visible indication of instrument status, while StaticDetect helps identify electrostatic charges that could otherwise introduce error into measurements involving small samples or lightweight containers.
The separate touchscreen terminal can also be positioned away from the weighing chamber, helping reduce unnecessary interaction with the balance during sensitive measurements.
Common Applications
The Mettler Toledo XPE26 is particularly well suited for applications where sample quantities are extremely small, expensive, limited, or difficult to obtain. Pharmaceutical and biotechnology laboratories may use a microbalance for weighing active pharmaceutical ingredients, reference materials, compounds, standards, and small quantities used during formulation or analytical development.
Analytical chemistry laboratories can use the XPE26 for gravimetric analysis, preparation of reference standards and calibration solutions, filter weighing, and other procedures where conventional analytical balance readability may not be sufficient.
The XPE26 is also appropriate for materials science, environmental testing, academic research, forensic laboratories, chemical development, quality control, and other applications requiring repeatable microgram-level measurements.
Ideal Laboratory Types
The XPE26 is a strong choice for pharmaceutical, biotechnology, chemical, materials science, environmental, forensic, academic, government, and industrial research laboratories.
It is particularly valuable when reducing sample consumption has a meaningful financial or scientific benefit. A laboratory working with costly compounds, scarce research materials, or very small quantities may be able to perform accurate weighing with substantially less material than would be practical with a conventional analytical balance.
Microgram-Level Weighing Performance
The defining feature of the Mettler Toledo XPE26 is its 1 µg readability. The balance provides this readability across its 22 g weighing range rather than limiting maximum resolution to a smaller fine-weighing range.
Typical repeatability is approximately 0.7 µg under appropriate conditions, while specified linearity is ±0.006 mg. The balance has a typical settling time of approximately 3.5 seconds.
For laboratories comparing analytical, semi-micro, and microbalances, readability is an important distinction. A conventional analytical balance commonly provides 0.1 mg readability, while a microbalance such as the XPE26 resolves mass at 0.001 mg. That represents a substantially greater level of sensitivity for applications involving very small sample quantities.
Minimum Sample Weight & USP Applications
Maximum capacity and readability alone do not determine whether a balance is suitable for a particular weighing procedure. Laboratories working under USP requirements should also consider the minimum sample weight required to achieve the necessary level of measurement uncertainty.
The Mettler Toledo XPE26 has a typical USP minimum weight of approximately 1.4 mg under specified operating conditions. Actual minimum weight can vary with environmental conditions, installation, balance condition, measurement uncertainty requirements, and laboratory procedures.
For regulated or validated applications, laboratories should establish minimum weight based on their own qualification procedures and applicable quality requirements rather than relying exclusively on a published typical value.
Controlling Drafts, Vibration & Static
At 1 µg readability, seemingly minor environmental influences can have a measurable effect on weighing results. Air movement, vibration, temperature changes, electrostatic charge, and handling technique become increasingly important as balance resolution increases.
The XPE26 uses a protected weighing chamber and Mettler Toledo's SmartGrid weighing pan to reduce the influence of air turbulence. The open-grid design also allows spilled material to fall below the weighing surface rather than accumulating immediately around the sample container.
Integrated StaticDetect technology helps alert the operator when electrostatic conditions could interfere with the measurement. This is particularly useful when working with powders, plastic containers, filters, and other materials prone to accumulating static charge.
For best performance, a microbalance should be installed on a stable weighing surface away from HVAC vents, frequently opened doors, direct sunlight, vibration-producing equipment, and other sources of environmental disturbance.
Calibration & Internal Adjustment
The XPE26 incorporates proFACT Advanced internal adjustment, which allows the balance to perform automatic adjustment procedures to help maintain weighing accuracy as laboratory conditions change.
Internal adjustment is especially valuable for high-resolution balances because temperature changes and other environmental factors can influence measurement performance at the microgram level.
Laboratories operating under GLP, GMP, USP, or internal quality systems may still require scheduled verification using appropriate traceable test weights and documented performance checks. Internal adjustment should therefore be viewed as part of a complete balance quality-control program rather than a replacement for laboratory-specific calibration and qualification requirements.
Key Specifications
Specification
Mettler Toledo XPE26
Balance Type
Microbalance / Micro-Analytical Balance
Maximum Capacity
22 g
Readability
0.001 mg / 1 µg
Typical Repeatability
0.0007 mg / 0.7 µg
Typical USP Minimum Weight
1.4 mg
Linearity
±0.006 mg
Settling Time
Approx. 3.5 seconds
Adjustment
Internal / proFACT Advanced
Weighing Pan
40 × 40 mm
Display
Detachable color touchscreen
Overall Dimensions
263 mm W × 487 mm D × 322 mm H
Status Monitoring
StatusLight
Static Detection
StaticDetect
Weighing Pan Technology
SmartGrid
Choosing Between a Microbalance and Analytical Balance
A microbalance is not automatically the best choice simply because it offers greater resolution. The correct balance depends on the smallest sample quantities the laboratory needs to weigh accurately, required measurement uncertainty, maximum sample or container weight, workflow, and environmental conditions.
Laboratories routinely weighing samples at the gram or hundreds-of-milligrams level may be well served by a conventional analytical balance. Applications involving very small sample quantities, however, may require a semi-micro or microbalance.
With 1 µg readability and a 22 g capacity, the XPE26 is particularly appropriate when the ability to accurately measure very small quantities is more important than having a large weighing capacity.
Refurbishment & Performance Testing
Every used Mettler Toledo XPE26 sold by American Instrument Exchange is inspected, cleaned, refurbished as necessary, calibrated, and tested before shipment.
Because weighing performance is the primary function of a microbalance, testing goes beyond simply confirming that the instrument powers on and displays a stable weight. Our technicians evaluate balance operation using appropriate test weights and check critical performance characteristics such as accuracy, repeatability, linearity, and weighing response.
The touchscreen, internal adjustment system, draft shield operation, leveling components, weighing chamber, display, controls, and other installed features are also inspected for proper operation.
Each refurbished XPE26 includes a 90-day warranty from American Instrument Exchange.
Shipping & Installation Considerations
Microbalances are precision measuring instruments and require more careful handling than many pieces of general laboratory equipment. The XPE26 is securely packaged for transportation to protect the weighing mechanism, draft shield, terminal, and other components during shipment.
Once installed, the balance should be placed on a rigid, level, vibration-resistant surface in an area with stable temperature and minimal air movement. Allowing the instrument to acclimate to the laboratory environment before calibration and use can help produce more consistent results.
For laboratories performing critical or regulated measurements, installation should be followed by appropriate calibration, verification, or qualification procedures according to the laboratory's quality system.
Related Laboratory Equipment
American Instrument Exchange maintains an extensive inventory of used and refurbished laboratory balances, including analytical balances, semi-micro balances, microbalances, and precision balances for applications ranging from routine sample preparation to high-resolution quantitative analysis.
What is the readability of the Mettler Toledo XPE26?
The XPE26 has a readability of 0.001 mg, or 1 microgram (µg), across its 22 g weighing capacity. This makes it considerably more sensitive than a conventional 0.1 mg analytical balance.
What is the maximum capacity of the XPE26?
The Mettler Toledo XPE26 has a maximum weighing capacity of 22 g.
What is the minimum weight for the Mettler Toledo XPE26?
Mettler Toledo lists a typical USP minimum weight of approximately 1.4 mg under specified conditions. Actual minimum weight should be determined according to the balance's installed environment, performance, measurement uncertainty, and the laboratory's applicable quality procedures.
What is the difference between the XPE26 and XPE26DR?
The standard XPE26 provides 1 µg readability throughout its 22 g range. The XPE26DR is a dual-range model with different readability depending on the weighing range. Laboratories purchasing either model should verify the exact model designation to ensure that its weighing specifications meet their application requirements.
Why is static electricity important when using a microbalance?
At microgram-level resolution, electrostatic forces can cause measurable weighing errors. Materials such as plastic containers, powders, filters, and weighing vessels may accumulate static charge. The XPE26's StaticDetect system is designed to identify electrostatic conditions that could compromise weighing results.
Does the XPE26 have automatic internal calibration?
The XPE26 incorporates proFACT Advanced automatic internal adjustment. This helps maintain weighing performance as environmental conditions change, although regulated laboratories may still require external verification and documented calibration procedures.
Is the Mettler Toledo XPE26 suitable for pharmaceutical laboratories?
Yes. Its microgram-level readability, low typical minimum weight, internal adjustment system, and weighing-performance features make the XPE26 well suited to pharmaceutical research, formulation, analytical development, standards preparation, and quality-control applications where very small sample quantities must be measured.
Why purchase a refurbished XPE26?
A refurbished XPE26 can provide laboratories with high-end microgram weighing capability without the acquisition cost associated with purchasing a comparable new microbalance. American Instrument Exchange tests and refurbishes each balance before shipment and provides a 90-day warranty.
