Memmert UF160 Forced Convection Universal Oven

Name: Memmert UF160 Forced Convection Universal Oven
Availability: OutOfStock

by Memmert

SKU 3740E OVEN

FULLY TESTED & WARRANTIED*

Sorry, this unit has just been sold. Please contact us for alternatives.

Quantity

Shipping

All products ship from our 30,000 sq. ft. Haverhill, MA warehouse

Contact Us

Call 978-521-2221
to request information & pricing for item 3740E OVEN

Memmert UF160 Forced Convection Universal Oven

The Memmert UF160 Forced Convection Universal Oven is a classic appliance for temperature control in science, research and material tests. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology. The UF160 has an internal volume of 5.68 ft³ or 161 L and uses forced air circulation.

Memmert UF160 Universal Oven – Snapshot

Model UF160
Capacity: 5.68 ft³ or 161 L
Temperature range: Ambient +10°C to +300°C
SingleDISPLAY
Manufacturer’s warranty

Control Technology

ControlCOCKPIT: adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-color display
SingleDISPLAY: Control temperature, fan speed, program time & more.
Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
Adjustable Parameters: temperature (Celsius or Fahrenheit), air flap position, program time, time zones, daylight savings time
Function SetpointWAIT: the process time does not start until the set temperature is reached
Language Setting: German, English, Spanish, and French
Calibration: three freely selectable temperature values

Benefits of the SingleDISPLAY

Temperature, air flap position and fan speed remain at a constant value throughout your process? You have no need for ramp programming or loops? You only have to dry insensitive materials and require neither multiple overtemperature protection nor a technically complex alarm system? Then the functions of Memmert's model variant SingleDISPLAY will be perfect for your application.

Expect outstanding precision and reliability paired with intuitive operation plus double overtemperature protection including visual alarm.
Available parameters on the ControlCOCKPIT: Temperature (Celsius or Fahrenheit), fan speed, exhaust air flap position, program time, time zones, daylight-saving time
Software AtmoCONTROL for data read out and programming of the data logger via Ethernet interface (temporary trial version as free download)
Ethernet interface on the rear of the appliance for reading out the protocol log and for online logging
Double overtemperature protection: Electronic temperature monitoring with freely adjustable monitoring temperature, for models U, I, S with option A6 TWW/TWB (protection class 3.1 or 2), mechanical temperature limiter TB acc. to DIN 12 880

Temperature Specs

Set temperature range: min.10°C above ambient up to +300°C
Temperature: 1 Pt100 sensor DIN class A in 4-wire-circuit
Resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED)

Safety Features

Temperature control: adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approximately 20°C above nominal temperature
Auto diagnostic system: for fault analysis

Textured Stainless Steel Casing

Fully insulated stainless steel doors with 2- point locking (compression door lock)
Rear zinc-plated steel
On lockable castors

For many years exterior textured stainless steel has been the unmistakable feature of Memmert ovens, incubators, and climate chambers in laboratory and light-industrial settings. Memmert equipment exemplifies functional design in its most elegant and hygienic form, while still being scratch resistant, robust and durable.

Stainless steel is the ideal material for temperature control chambers and heating baths. It is particularly corrosion-resistant, hygienic, robust and recyclable without question.

Wherever Memmert ovens and heating baths are used, the superiority of high-quality stainless steel is undeniable in comparison to others that utilize coated sheet steel, which can corrode very quickly when in constant use.

For the outer housing of all Memmert appliances, textured stainless steel is used (rear walls are zinc-plated sheets). The inner chamber, sliding shelves/grids, housing, interior basin and accessories for every heating bath, stainless steel of class W-St. 1.4301 (ASTM 304) is used.

Memmert UF160 Universal Oven - Specifications

Exterior dimensions	29.33”W x 22.99”D x 43.46”H
Internal dimensions	22.05”W x 15.75”D x 28.35”H
Capacity	5.68 ft³ or 161 L
Temperature range	Ambient +10°C to +300°C
Crated weight	268.96 lbs

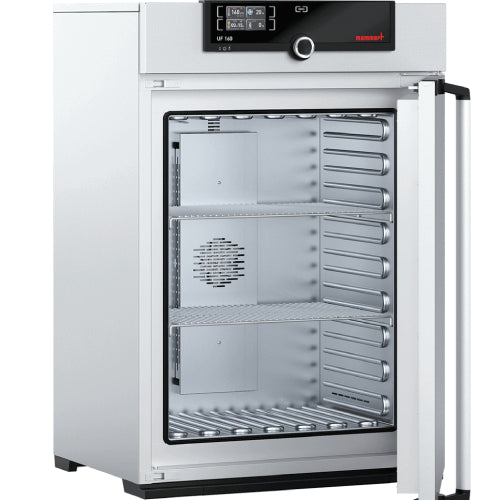

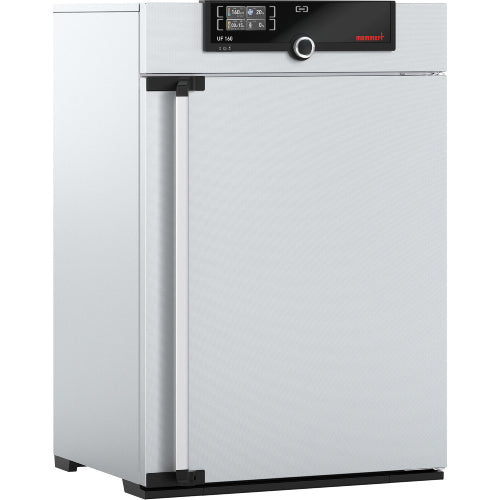

Memmert UF160 Forced Conveciton Universal Oven - Pictures

The photos above represent our equipment. If you request, we will provide photos of your specific equipment after an order is in place and it arrives from Memmert.
