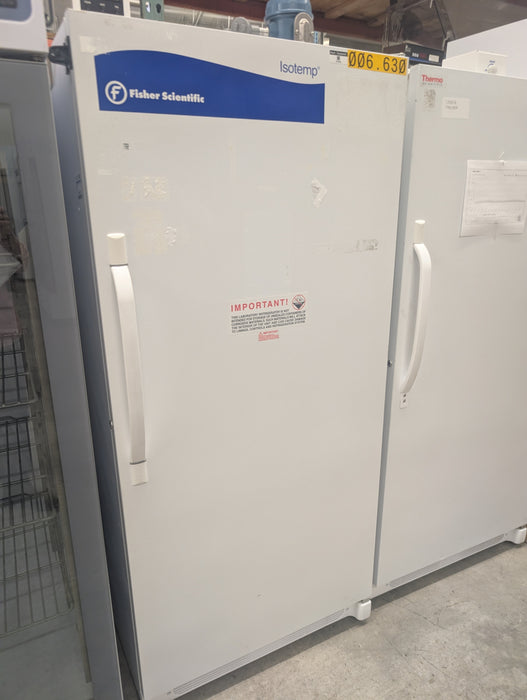

Fisher Scientific 13-986-150 Explosion-Proof Freezer

Product Code : SKU 2572V FREEZER

Price Match Policy

Shipping

All products ship from our 30,000 sq. ft. Haverhill, MA warehouse

Fisher Scientific Isotemp 13-986-150 Explosion-Proof Laboratory Freezer

Laboratories that operate in hazardous environments require equipment designed to do more than simply maintain frozen temperatures. When flammable vapors may be present both inside the storage cabinet and in the surrounding room, an explosion-proof laboratory freezer provides an additional level of protection beyond a standard laboratory or flammable material storage freezer. The Fisher Scientific Isotemp 13-986-150 Explosion-Proof Laboratory Freezer is specifically engineered for these demanding environments, providing dependable -12°C to -20°C storage while meeting the requirements for installation in designated hazardous locations.

With approximately 20.6 cubic feet (583 L) of storage capacity, the 13-986-150 is an excellent choice for chemical manufacturers, pharmaceutical facilities, petrochemical laboratories, universities, government research facilities, and industrial laboratories where ignitable vapors may be present. Unlike conventional laboratory freezers, this model features both a spark-free interior and explosion-proof exterior electrical components, allowing it to be safely installed in Class I, Division 1, Group C and D hazardous locations when properly hardwired.

Many laboratories install explosion-proof freezers alongside chemical fume hoods for handling volatile solvents, laboratory refrigerators for refrigerated chemical storage, biosafety cabinets for biological sample preparation, and laboratory freezers for non-hazardous frozen storage.

Fisher Scientific 13-986-150 Key Features

20.6 cu. ft. (583 L) storage capacity
Temperature range: -12°C to -20°C
Explosion-proof interior and exterior construction
Designed for Class I, Division 1, Group C & D hazardous locations
Manual defrost operation

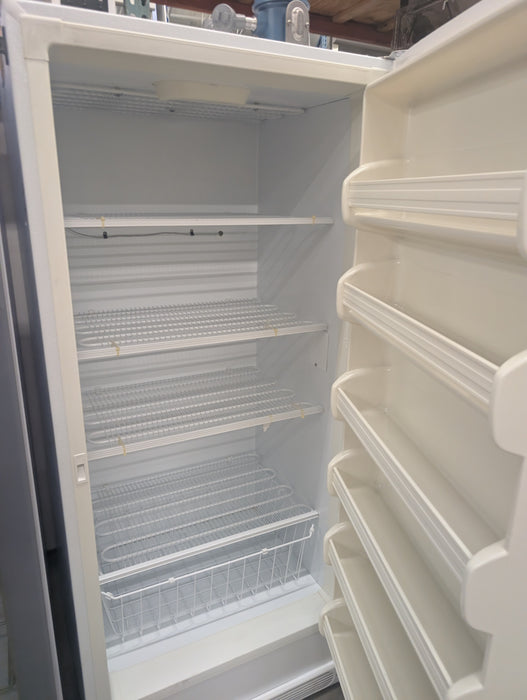

Four fixed interior shelves
Heavy-duty insulated solid door
Hardwired electrical connection (no power plug)
Spark-free refrigeration components
White powder-coated exterior
Refurbished and performance tested by American Instrument Exchange
90-day warranty included

Fisher Scientific 13-986-150 Overview

The 13-986-150 is intended for laboratories where hazardous concentrations of flammable gases or vapors may exist in the surrounding environment. Unlike a flammable material storage freezer—which protects against ignition of vapors inside the cabinet—an explosion-proof freezer also protects against ignition from electrical components located outside the storage compartment.

Electrical controls, thermostat components, relays, and wiring are housed within explosion-proof enclosures, while the refrigeration system is engineered for installation in classified hazardous areas. This allows laboratories to safely store volatile chemicals requiring frozen temperatures while complying with facility safety requirements for hazardous locations.

Common Applications

The Fisher Scientific 13-986-150 is commonly used for storing:

Flammable laboratory solvents
Organic standards
Volatile chemical reagents
Petroleum samples
Pharmaceutical compounds
Chemical reference materials
Hazardous laboratory chemicals
Industrial process samples

Ideal Laboratory Types

The 13-986-150 is well suited for:

Chemical manufacturing facilities
Petrochemical laboratories
Pharmaceutical production facilities
Government research laboratories
University chemistry departments
Environmental testing laboratories
Industrial R&D facilities
Hazardous materials laboratories

Laboratories operating in classified hazardous environments benefit from the additional protection provided by a true explosion-proof freezer.

Why Choose an Explosion-Proof Freezer?

One of the most common points of confusion is the difference between flammable material storage freezers and explosion-proof freezers.

A flammable material storage freezer is designed to prevent ignition of flammable vapors inside the cabinet. An explosion-proof freezer, however, is engineered for installation in hazardous locations where ignitable vapors may also exist outside the cabinet. To accomplish this, electrical controls and wiring are enclosed in explosion-proof housings, and the unit must be permanently hardwired according to applicable electrical codes.

If your laboratory is located in a classified hazardous area, an explosion-proof freezer is typically the appropriate choice.

Typical Stored Materials

The Fisher Scientific 13-986-150 is commonly used for storing:

Organic solvents
Flammable reagents
Petroleum products
Chemical standards
Industrial process samples
Volatile pharmaceutical compounds
Analytical reference materials

Fisher Scientific 13-986-150 Key Specifications

Capacity

20.6 cu. ft. (583 liters)

Temperature Range

-12°C to -20°C

Construction

Explosion-proof interior and exterior
Heavy-duty insulated cabinet
White powder-coated finish
Four fixed interior shelves
Manual defrost

Safety Features

Approved for Class I, Division 1, Group C & D hazardous locations
Spark-free interior
Explosion-proof electrical enclosures
Hardwired installation required
cCSAus listed (model family)

Electrical Requirements

115V, 60 Hz
5.0 Amps
Must be permanently hardwired by a qualified electrician (no factory-installed plug)

Exterior Dimensions

31 in. W × 32 in. D × 71 in. H

Interior Dimensions

20 in. W × 27 in. D × 57 in. H

Weight

Approximately 200 lbs. shipping weight

Operating Costs & Energy Considerations

The 13-986-150 operates at conventional laboratory freezer temperatures, making it considerably less expensive to operate than an ultra-low freezer. Manual defrost eliminates automatic warming cycles that could affect temperature-sensitive chemicals, while routine condenser cleaning and periodic manual defrosting help maximize refrigeration efficiency. Because this freezer is designed for hazardous locations, installation should always be performed by qualified personnel familiar with applicable electrical and fire safety codes.

Specifications compiled from Fisher Scientific manufacturer literature and American Instrument Exchange product information.

Refurbishment & Testing Process

Every Fisher Scientific 13-986-150 received by American Instrument Exchange undergoes a comprehensive inspection before shipment. Our technicians verify refrigeration performance, thermostat operation, compressor function, cabinet integrity, shelving, and door gasket condition. Temperature performance is confirmed using calibrated instrumentation, and the freezer is thoroughly cleaned before shipment. Because explosion-proof equipment is installed in specialized environments, customers should have final installation and electrical connection completed by qualified personnel in accordance with local codes.

Laboratories outfitting hazardous chemical storage areas frequently purchase chemical fume hoods, laboratory refrigerators, laboratory freezers, biosafety cabinets, and centrifuges from American Instrument Exchange.

Shipping & Installation Considerations

The Fisher Scientific 13-986-150 ships by freight from American Instrument Exchange. Before installation, laboratories should verify doorway clearances, available floor space, and electrical service. Because this freezer is intended for hazardous locations, it must be permanently hardwired by a qualified electrician in accordance with local electrical codes and facility safety requirements. Adequate ventilation around the condenser should also be maintained for optimal refrigeration performance.

Frequently Asked Questions

How is an explosion-proof freezer different from a flammable material storage freezer?

A flammable material storage freezer protects against ignition of vapors inside the cabinet. An explosion-proof freezer also protects against hazardous vapors outside the cabinet, allowing installation in classified hazardous locations.

Can this freezer be plugged into a standard wall outlet?

No. The 13-986-150 is supplied without a power plug and must be permanently hardwired by a qualified electrician in accordance with applicable electrical codes.

What types of laboratories use explosion-proof freezers?

They are commonly used in chemical manufacturing, petrochemical facilities, pharmaceutical production, hazardous materials laboratories, and other environments where ignitable vapors may be present.

How is the Fisher Scientific 13-986-150 tested before shipment?

Every refurbished Fisher Scientific 13-986-150 is inspected and temperature tested by American Instrument Exchange technicians. Refrigeration performance, temperature stability, cabinet integrity, and overall operation are verified before shipment. Final electrical installation should always be performed by qualified personnel.

Testing Procedures for Used and Refurbished Laboratory Freezers

Cold Storage Reliability from American Instrument Exchange

At American Instrument Exchange, every used and refurbished laboratory freezer we offer undergoes a comprehensive multi-point testing protocol to ensure optimal performance, temperature stability, and long-term reliability. Our rigorous testing procedures are designed to meet the demanding standards of biomedical, pharmaceutical, research, and clinical environments—so you can trust your freezer to protect your valuable samples and materials.

Why Testing Refurbished Laboratory Freezers Is Critical

Before any laboratory freezer is placed back into service, it must be carefully tested for:

Consistent temperature control and uniformity across internal zones
Compressor functionality and refrigeration system performance
Seal integrity and insulation efficiency to prevent temperature loss
Electrical safety and alarm system operation

Thorough testing minimizes the risk of temperature excursions, equipment failure, and product loss—especially for temperature-sensitive items like reagents, biological samples, and vaccines.

Our structured testing protocol ensures that all used and refurbished laboratory freezers meet or exceed manufacturer specifications and industry expectations.

Key Testing Procedures for Laboratory Freezers

1. Visual and Structural Inspection

Examine the exterior for dents, corrosion, or physical damage
Check door gaskets, hinges, and latches for wear and functionality
Inspect power cords, control panels, and internal compartments

2. Functional Startup and System Check

Power on the unit to verify startup sequence, control panel functionality, and display readability
Test programmable settings, alarms, and door-open sensors
Ensure proper door closure and sealing performance

3. Temperature Performance and Stability Testing

Test temperature sensors using certified thermometers or probes
Monitor chamber temperature at multiple points over extended run periods
Verify temperature uniformity and accuracy across common lab setpoints (e.g., -20°C, -30°C)

4. Compressor and Refrigeration System Evaluation

Test compressor startup, cycling behavior, and operating noise
Check condenser coils, evaporators, and fans for performance and cleanliness
Inspect for refrigerant leaks or pressure issues that may affect efficiency

5. Electrical Safety and Compliance Verification

Confirm proper grounding and insulation of all electrical components
Conduct safety testing to meet laboratory equipment electrical standards
Verify functionality of alarms for power loss, temperature excursions, and system faults

6. Final Quality Assurance and Runtime Validation

Conduct multi-day test cycle to confirm stable performance under continuous use
Record temperature data, alarm responses, and compressor cycling metrics
Complete final inspection and prepare detailed service documentation

Reliable Cold Storage, Backed by Testing Excellence

Each refurbished laboratory freezer from American Instrument Exchange is tested and certified for cold storage accuracy, safety, and performance. Whether upright, undercounter, flammable-material rated, or specialty-purpose, our lab freezers are restored to meet real-world research and clinical demands.

Trust American Instrument Exchange for dependable, tested, and warrantied laboratory refrigeration—ready to support your lab from day one.

Repair and Refurbishment Protocol for Used Laboratory Freezers
Certified Cold Storage Performance from American Instrument Exchange

At American Instrument Exchange, every used laboratory freezer we offer is subjected to a comprehensive repair and refurbishment protocol. Whether it’s a general-purpose lab freezer, flammable-material grade unit, or undercounter model, our goal is to restore each system to peak performance—ensuring consistent temperature control and reliable operation.

Why Choose a Refurbished Laboratory Freezer from American Instrument Exchange?

• Fully tested for cold storage accuracy and operational safety
• Backed by a warranty
• Cost-effective alternative to new refrigeration equipment
• Sustainably refurbished to reduce environmental impact
• Serviced by expert technicians with decades of laboratory equipment experience

Step-by-Step Refurbishment Protocol

Every laboratory freezer from American Instrument Exchange follows a detailed, multi-stage process to ensure top-tier performance and reliability:

1. Initial Intake & Inspection

• Visual inspection for dents, corrosion, or structural damage
• Mechanical check of door hinges, gaskets, seals, and internal components
• Documentation of missing parts or areas requiring repair or replacement

2. Cleaning and Decontamination

• Internal and external cleaning using non-abrasive cleaners
• Decontamination/cleaning of all surfaces to remove biological or chemical residues
• Thorough cleaning of shelving, drawers, and removable interior parts

3. Mechanical and Electrical Repairs

• Replacement or repair of worn mechanical parts (door latches, seals, hinges, etc.)
• Inspection and restoration of control interfaces, thermostats, sensors, and displays
• Evaluation of wiring, relays, fuses, and power supply components for safety and integrity

4. Refrigeration System and Compressor Evaluation

• Testing of compressor function, condenser coils, and evaporators
• Inspection for refrigerant leaks and pressure performance (if applicable)
• Verification of proper airflow, fan operation, and defrost cycles

5. Temperature Calibration and Performance Testing

• Testing of temperature sensors and control boards
• Verification of temperature stability and uniformity throughout the chamber
• Testing of multiple setpoints (e.g., -20°C to -30°C) over extended operating periods

6. Safety and Compliance Checks

• Inspection of grounding and electrical insulation per lab safety standards
• Testing of alarm systems (if applicable) for temperature excursions or power failure

7. Final Quality Control and Documentation

• Multi-day operational test
• Final cleaning, inspection, and performance validation
• Detailed service report with temperature logs and repair notes

Trust the Experts at American Instrument Exchange

With over 50 years of industry experience, American Instrument Exchange is a leading provider of high-quality refurbished laboratory equipment. Our proven laboratory refrigerator refurbishment protocol ensures consistent, accurate cold storage—so you can safeguard your samples with confidence.
