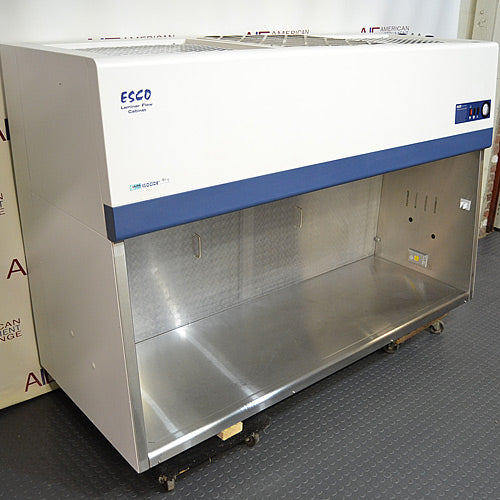

Esco Airstream Horizonal Laminar Flow Clean Bench
The 100% stainless steel interior provides better cleanability of the work zone. Class 100 (US Fed Std 209E) product protection with ULPA filter 99.999% at 0.12 microns and pre-filter. Built-in tempered glass sides, external rotor motor system, variable speed control. The interior surface will not chip, rust or generate particles. The spillage-retention work top design with a recessed central area ensures that all liquid spills are contained. The ergonomically designed work surface with a curved front edge is designed for maximum operator comfort. A raised edge at the back of the work zone prevents spills from damaging the filter. Built-in warm white, electronically ballasted, 5000k lighting provides excellent illumination of the work zone and reduces operator fatigue. The reliable lighting system is zero-flicker and instant start. The removable perforated filter diffuser on all models provides protection to the filter and improves airflow uniformity.
Click here to see a video of this clean bench on our YouTube channel.
On the horizontal flow bench, the diffuser provides additional protection in the event of an accidental spillage and is easy to clean. High quality ULPA filters, utilizing an improved mini-pleat separation technique to maximize surface area, improve efficiency and extend filter life. Filters operate at a typical efficiency of >99.999% at 0.1 to 0.3-micron sizes, providing superior product protection over conventional HEPA filters. A built-in solid-state variable speed controller (infinitely adjustable from zero to the maximum setting) with built-in RFI and noise filters is superior to conventional "step" controllers.
Room air is taken in from the top of the clean bench through a disposable pre-filter with 85% arrestance; this serves to trap larger particles and increase the lifespan of the main filter. Air is forced evenly across the ULPA filter(s); the result is a stream of clean laminar air within the work zone of the clean bench; this dilutes and flushes all airborne contaminants from the interior. A nominal filter face velocity of 0.45 m/s or 90 fpm ensures that there is a sufficient number of air changes within the enclosed area of the clean bench in order to maintain cleanliness.
Esco Airstream Horizonal Laminar Flow Clean Bench - Specifications
| Exterior dimensions (with stand) | 76.8”W x 31.2”D x 83.4”H |
| Work area dimensions | 73.6”W x 24.8”D x 28.5”H |
| Laminar airflow velocity | Average of 0.45m/s or 90 fpm |
| Main filter typical efficiency | 99.9995% at 0.3µm / 99.999% at MPPS |
| Noise level | 65 dBA |
| Electrical requirements | 110-120VAC, 60Hz, 14A (total max) |
Our technicians test each clean bench to ensure that the controls and blower motor work properly, as well as ensuring that the ULPA filter is suitable for use in lab conditions. Our testing procedure includes all the elements of a clean bench certification in order to ensure that the unit will pass certification once it is at your site
The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
For inquiries about the Esco Airstream AHS-6B2, please give us a call at 978-521-2221, or fill out the form on this page.
Yes, all equipment from American Instrument Exchange comes with a warranty.
Used/reconditioned/refurbished equipment is tested to make sure it operates to the manufacturer’s specifications and comes with a 90-day warranty (unless otherwise noted). New equipment comes with a warranty from the manufacturer.
Testing requirements vary across all the equipment categories we sell. Temperature controlled units are tested with NIST traceable probes and data loggers. Gaskets, external housing, glass, handles, controls and control screens are all thoroughly inspected for integrity and functionality.
We test all equipment using the manufacturer's parameters and specifications to confirm that the unit operates properly. While we may not be able to test for specific analytical applications we do our best to simulate the conditions under which the equipment will be used in your lab. If you have particular testing requirements please let us know and we’ll work with you to make sure these are addressed during testing.
