Baker SterilGARD e3 SG604 Stainless Steel biosafety cabinet

Baker SterilGARD e3 SG604 Class II Type A2 6' Biosafety Cabinet

The Baker SterilGARD e3 SG604 Stainless Steel biosafety cabinet is the most energy efficient biosafety cabinet available today. The newly redesigned airflow management system saves energy and improves both user comfort and safety. Maximum user protection is achieved through six technologies working in concert: momentum air curtain, high-velocity return air slots, aerodynamically designed airfoil, optimized downflow, and unique air bypass armrest.

The energy saving features not only provide up to 60% increased energy efficiency when compared to similar biosafety cabinets but also extend HEPA filter lifespan by up to 30%.

Baker SterilGARD e3 SG604 Stainless-Steel biosafety cabinet features

• Stainless-steel finish
• Includes stand and new filters
• No UV light
• 90-day warranty

The Baker SterilGARD e3 SG604 also features the new trademarked ReadySAFE mode. A unique padded armrest allows the cabinet to continue operation and maintain A2 conditions with the viewscreen in the close position. When the sash is lifted, the cabinet is instantly safe upon resuming standard operation.

Baker designed the versatile ReadySAFE mode to be used during breaks to maintain safe conditions and save energy. It can even be used during extended breaks such as overnight.

The audible and visual alarms alert the operator of some unsafe conditions. Alarms include power/processor fault alarm, viewscreen alarm, and double viewscreen position sensor fault alarm.

Each SG604 cabinet has one cable port located in the right sidewall which provides a safe means of introducing power cables, vacuum aspiration tubing or other similar items into the work area. The flexible neoprene seals allowing multiple cables and/or tubing totaling up to 1 inch in diameter.

The operator controls and indicators are arranged in a single, easily cleaned membrane switch assembly on the front of the cabinet. There are pushbuttons for blower, fluorescent light, outlets, optional ultraviolet light and alarm mute.

Bake built the motor and blower as a single assembly and balanced to minimize vibration. The motor control automatically compensates for an increase in pressure drop across the filters without reducing the total air flow rate by more than 10%. The air flow capacity of the cabinet is measured by the ability to provide a nearly constant volume of air as the filter resistance to airflow increases.

CLICK HERE to see the stainless-steel 6' Baker SterilGARD e3 SG604 biosafety cabinet on our YouTube channel

Testing

Our technicians test each bio safety cabinet to ensure that the controls and blower motor work properly. Unless otherwise specified all bio safety cabinets come with new HEPA filters installed by our technicians at our facility prior to shipment.

Our testing procedure includes all the elements of a bio safety cabinet certification in order to ensure that the unit will pass certification once it is at your site.

Pictures

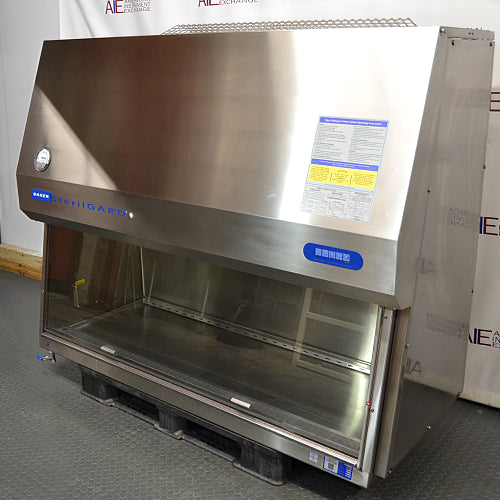

The photos above are representative. The equipment shown is currently in storage in our warehouse. In addition to testing each machine we will clean all the equipment thoroughly prior to shipment.

We often have multiple units of each model in stock. Sometimes we're unable to feature photos of every single unit. We can provide photos of the equipment in your order after it has been tested and cleaned.

Baker SterilGARD e3 SG604 - Specifications
