4E's USA – Large Volume Nucleic Acid Extractor - NEW
The 4E’s USA MultiEX 024L provides automated nucleic acid extraction and purification using magnetic bead-based separation, with the capacity to process 1-24 samples in a single run. The MultiEX 024L is designed for nucleic acid extraction from large volume samples, with a maximum processing volume of 8mL.
Ideal for nucleic acid extraction involving larger initial sample volumes, particularly cfDNA (cell-free DNA) extractions from bodily fluids (liquid biopsy) and pathogenic DNA extraction from water sources including wastewater. It is suitable for research facilities, diagnostic laboratories, and biotechnology industry.
Processes large initial sample volumes (up to 8mL) for automated nucleic acid extraction with final elution volumes as low as 50 µL. Powerful oscillation mixing technology that combines vortex mixing up to 3000 RPM within each well, and linear back-and-forth mixing of the entire plate for thorough mixing. Built-in UV disinfection lamp eliminates cross-contamination and automatically powers off after disinfection. Built-in filtration system provides contamination-free ventilation. Multi-functional operating system with streamlined functions to edit program parameters for custom protocols, upgrade the system via USB, and import/export programs via USB.

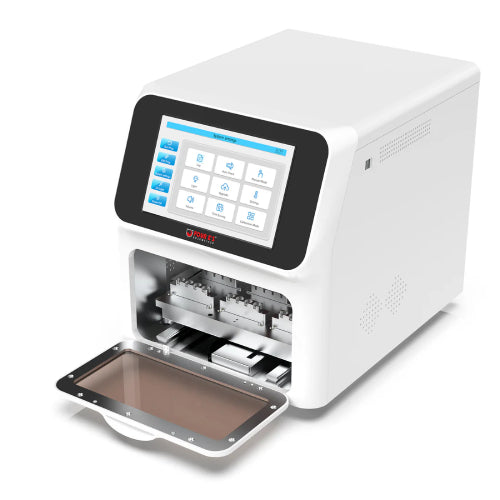

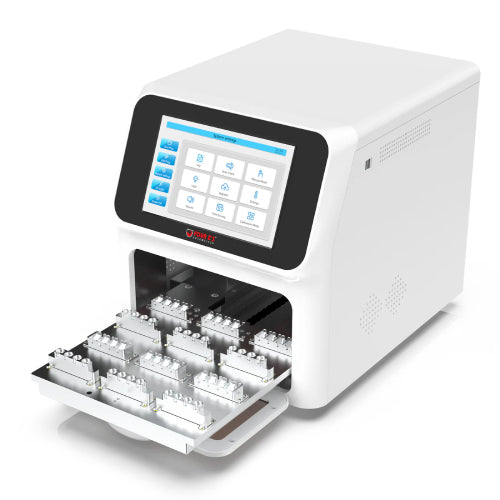

The photos above are representative. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
4E's USA Large Volume Nucleic Acid Extractor – Specifications
| Throughput | 1-24 Samples |
| Processing Volume | 50µl – 8 ml |
| Processing Time | 20 – 40min/run (depending on reagent and volumes) |
| Capacity | Supports up to 24 Reagent Strips or 6 Plates |
| Consumables | Reagent Strips (Single Sample) / Strip Plates (4 Samples) and Magnetic Rod Sleeves |
| Reagent Type | Magnetic bead-based reagent kits (open system) |
| Heating Temperature Range | RT to 125℃ |
| Temperature Accuracy | 1.5℃ |
| Mixing Method | Rotational Mixing (Rod Sleeves) + Linear Shaking (Plate) |
| Mixing Speed (Rod Sleeves) | 0-3000rpm |
| Magnetic Beads Recovery Rate | 98% |
| Inter-well Purification Variance | CV＜5% |
| Contamination Control | UV light sterilization Filtration system |
| Program Management | Create & Edit and Delete options available |
| Data Storage Capacity | 500 programs |
For inquiries about the 4E's USA Large Volume Nucleic Acid Extractor, please give us a call at 978-521-2221, or fill out the form on this page.
